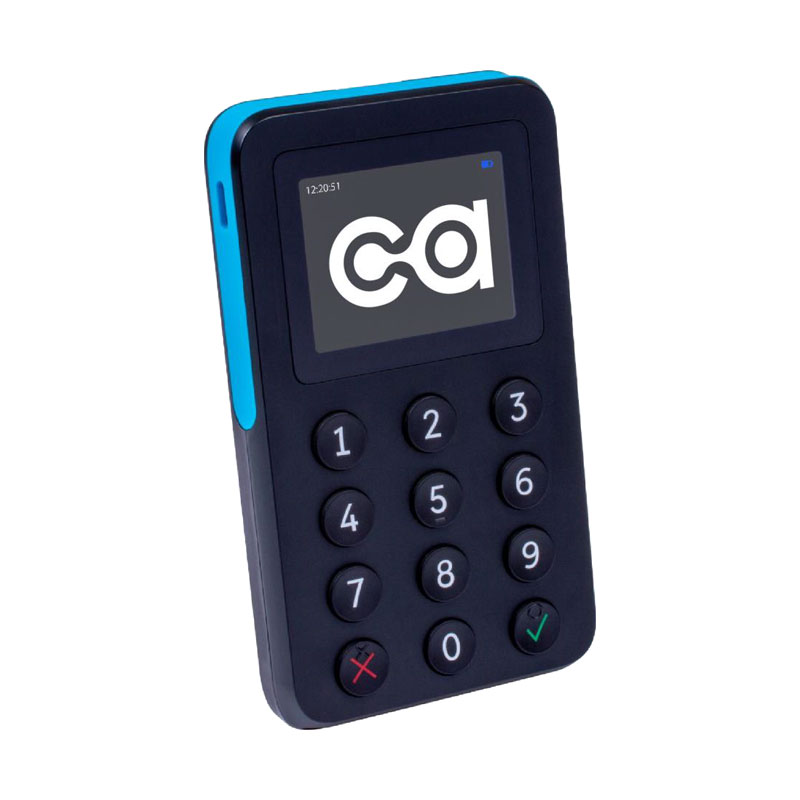

Go PIN Pad Technical Specifications
| CPU | Secure ARM Cortex M4 |
| Buttons | On/Off button, 10 nume ric buttons, 2 function buttons |
| Display | 320 x 240 px 2-lnch Color TFT |
| Magnetic Card Reader | Triple track bi-directional |
| Smart Card Reader | Friction type |
| Contactless Reader | NFC-A, ISO 14443 Type A NFC-8, ISO 14443 Type B NFC-F, Felica NFC-V. ISO 15693 |
| Contactless Payments | VISA payWave Mastercard PayPass American Express DPAS (Discover) |
| Connectors | USS {device) |
| Wired Communication | iOS Android Windows |
| OS Compatibility | iOS, Android, Windows |
| Bluetooth | BT version 4.2 Low Energy |
| Wireless (optional) | Wi-Fi IEEE 802TI b/g/n |
| Cellular Module (optional) | 2G/4G communication |
| LED Indication | Contactless payment status |
| Audio Features | Electromagnetic buzzer |
| Power Supply | DC 5 V through USS DC 5 V through contact pins |
| Battery | Rechargeable Li-Po Battery 3.7 V, 620 mAh |
| Reliability | 500,000 chip card cycles 1,000,000 button clicks |
| Certificates | CE, FCC, PCI PTS 5.x, EMV Level 1, EMV Level 2, EMV Level 1 Con tactless, TQM |
| Dimensions | 69 W x 121 D x 16 H (mm) |
| Weight | 138g |
| Operational Temperature | -10°C to 40°C / S to 90% RH |
| Storage temperature | -15°C to 50°C / 5 to 90% RH |
| Drop Tested | 1.2 m, faces and edges |
| Other Box Contents | USS Type-A to USB Type-C cable |
